8-station bag filling sealing machine - Shanghai Hongde Packing machinery Co,Ltd.

Premade Bag giving machine

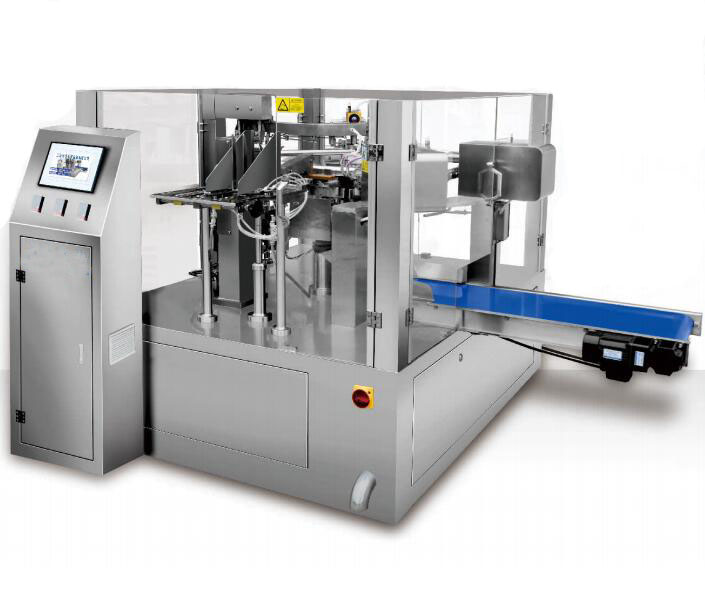

8-station bag filling sealing machine

Station process

1.bag feeding

2.date coding

3.bag opening

4.filling 1st --- vibration (option)

5.filling 2nd (if necessary)

6.Reverse

7.heat sealing 1st

8.heat sealing 2nd and forming

Equipment model	RFS-8
Measuring type	Auger filler dosing/ Cup filler/weigher
Bag materials	Heat sealable film as PA/PE,PET/PE,AL film etc.
Bag size	W:80~230mm L: max 350mm
bag type	self-stand pouch/zipper bag/3 or 4 side bag/paper bag
Packing speed	max.60bags/min (depended on the product and filling weight)
Package accuracy	Error≤±1%
Weight	1500kg
Dimension	165013561310(LWH)
power source	3P 380V 50HZ 4.5KW
Compress air requirement	0.6m³/min (compress air is provided by user)
