Description:

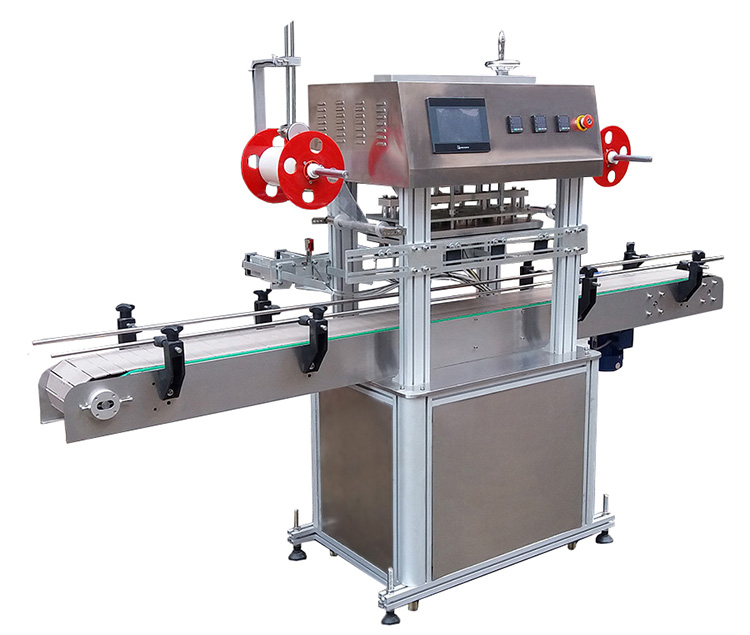

This automatic sealing machine is made by customized ,suitable for sealing plastic bucket/jar/bottle, the whole machine is made of stainless steel 304,pneumatic thermal sealing of high efficiency and easy operation .This machine able to connect working with other lines ,automatic conveyor running and cutting film/sealing , seal heads can be 1/2/3/4 as customer requested.
Technical data
|
Model No |
ASR-4 |
|
Sealing head |
1-4 |
|
Capacity |
10-30bpm ( 1-4 head option) |
|
Bottle size |
Diameter 50-250mm ,Height over 40mm |
|
Power supply |
AC220-240V/50Hz, |
|
Compressed air |
0.5-0.8Mpa |
|
Seal material |
PP. PE. PET. PS, Aluminum/paper film |
|
Temperature |
0-300℃ |
|
Dimension:/weight |
2500*1000*1500mm/ 250kgs |
|
PLC Touch screen control , Temperature and timing adjustable. |
|
