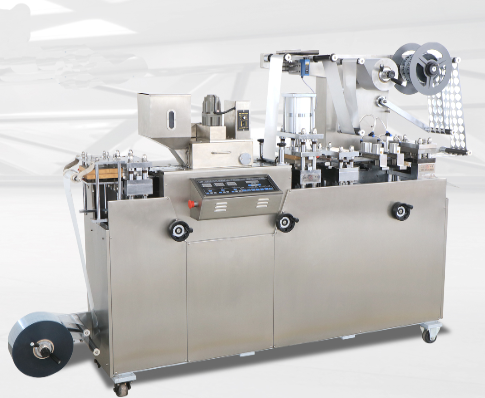

Features:
1.Adopted advanced high-power transmission device,main transmission shaft droven by chains.Avoid the noise and error by gear.
2.Imported electric parts for control system.Or install second feeder for lacking capsule and capsule inspecting device reject empty blister.
3.PVC forming,capsule feeding,heat sealing in one segment;
4.Adopted photoelectric system,PVC,PTP,ALU.automatically feeding,waste material collecting.ensure the multi units work steadily.
5. (Optional)-Use photoelectric inspecting system,equiped with advanced step motor for traveling.graphic version printing,optimise the packaging.
6.This machine is suitable for Capsule,Tablet,Sugar-coating pill,Gelatin capsule,injection,and other medical instrument,food,electronics.
Technical Parameter
|
Model |
PC-160 |
|
Punching frequency |
15-35 Cycles/min. |
|
Production capacity |
4200 Pcs/H |
|
Max.forming area,depth |
140*110*26mm |
|
Standard travel range |
20-110mm |
|
Standard blister size |
80*57mm |
|
Air supply |
0.6-0.8Mpa |
|
Total power |
380V/220V 50Hz 3.2Kw |
|
Main motor power |
1.5Kw |
|
PVC sheet |
Thickness（0.15-0.5）*Width140mm |
|
PTP |
Thickness (0.02-0.035)*140mm |
|
Dialyzing paper |
(50-100)g*140mm |
|
Cooling mould |
Running water,Circulation water |
|
Overall dimension |
2300*560*1410mm |
|
Weight |
900Kg |
|
Noise |
<75dBA |
