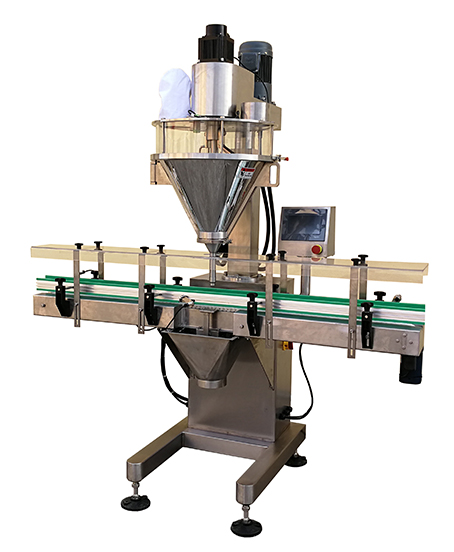

This Machine is an economical solution for powder into solid container . It consists of one aguer filler , one covneyor with pneumatic stopper . Machie can auto move the empty container , detect it pass then send singal to stopper then filing . It normal work with other equipment like cappers, labelers, etc.it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
Main features
PLC, Touch screen and weighing module control.
Servo motor drive screw.
Include handwheel of adjustable height.
electric scale for weight feedback included
Main Technical Data
|
Model |
JN-SL-1A | JN-SL-1B |
|
Dosing mode |
Auger dosing | Auger dosing |
|
Filling weight |
1 - 500g |
10 – 5000g |
|
Filling Accuracy |
≤ 100g, ≤±2%；100 – 500g, ≤±1% |
≤ 500g, ≤±1%; >500g, ≤±0.5% |
|
Filling Speed |
15 – 40 bottles per min |
15 – 40 bottles per min |
|
Power Supply |
3P AC208-415V 50/60Hz |
3P AC208 - 415V 50/60Hz |
|
Air Supply |
6 kg/cm2 0.05m3/min |
6 kg/cm2 0.05m3/min |
|
Total power |
1.2Kw |
1.6Kw |
|
Total Weight |
160kg |
300kg |
|

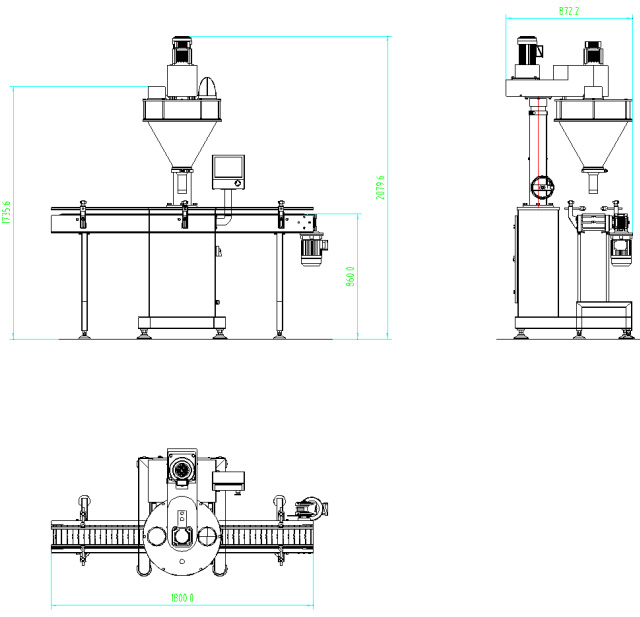

Overall Dimensions |
1500×760×1850mm |
2000×970×2030mm |
|
Hopper Volume |
25L |
50L |
