Descriptive abstract:

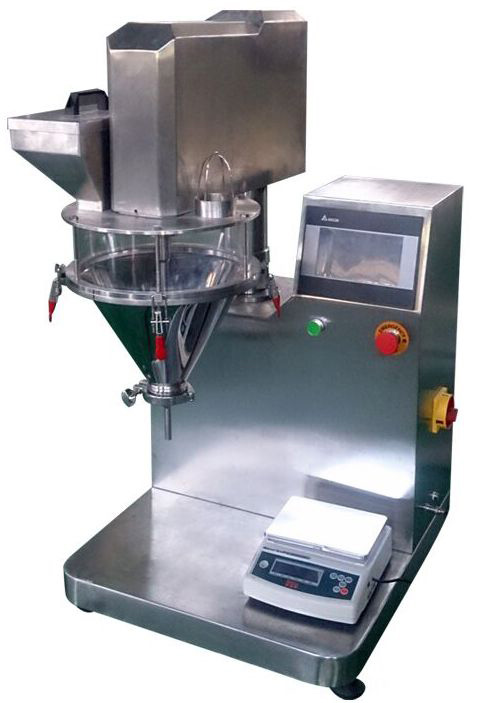

This type can do measuring and filling work. Due to the special desktop design, it suits most kinds of powder and small granular materials packing below 100g,like medicine powder, pharmaceutical powder,metal powder,makeup/cosmetic powder etc.
Characteristics:
2 Made of stainless steel 304, meet GMP standard
2 Delta Servo control auger, more stable and accuracy
2 Delta PLC+ touch screen control, English version interface
2 With electrical scale which connect with touch screen for weight feedback
2 Foot Pedal control filling ,simple operate
2 Hopper easy load and unload without tools , inner wall polished .easy cleaning
Have full SS material hopper and PMNA hopper on top of SS as option
2 With manual feeding hopper for material feeing easily
2
Main Specification
Model |
JN-FS-11 |
Metering Mode |
Auger rotation filling traced by weighing feedback |
Hopper |
Disconnect hopper 11L |
Display |
PLC ,touch screen control |
Packaging Weight |
0.5g ~ 100g (auger tools changed) |
Packaging Accuracy |
0.5- 1g,≤±6%;1-5g ,≤±3%;5- 100g,≤±2% |
Packing Speed |
10 ~ 60 bpm (exact speed according to the material and worker’s operation) |
Power Supply |
1P 220V or 3P AC208V ~ 415V 50/60HZ |
Total Power |
0.81KW |
Weight |
75kg Net wt , 90Kg ( Gross weight ) |
Overall Dimensions |
650×650×1050 mm |
