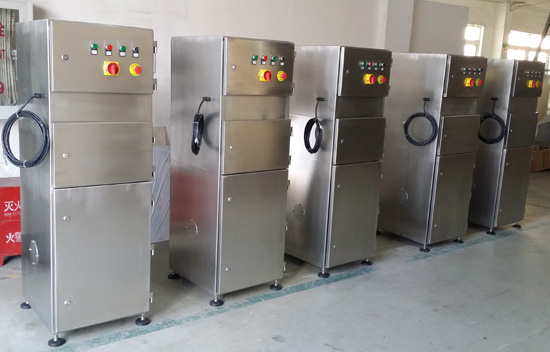

Industrial Dust Collector

Introduction

Descriptive abstract
The gas with powder goes into the dust collector through inlet hose under pressure, air expansion at this time, lower flow velocity will cause the large particles of powder separated from the gas with powder and fells into the dust drawer under the gravity. Other tiny powder is adhered to the filter’s outer wall with the air flowing direction and then clean by the vibration device. After purification, the gas goes out from the top outlet through the filter and filter cloth.

Main features
Elegant & splendid：Whole machine are made from full stainless steel including draught fan, it is accord with working environment of food grade.
High efficiency：The singlde drum filter of folding micron grade can absort more powders
Strong strength：Secial design of multi blade wind wheel with more stronger suction abiblity.
Convenient cleaning：One-key type vibraion cleaning powders, be more efficient to romove the powders which attached the cylindar filter, clean dusts efficiently.
Hommization：Adding romote controlling system, be convenient to distance controlling equipments.
Lower noises：Special insulation cotton reduce noises more efficiently.

Main Technical Data

Model	DC-1.5	DC-2.2	DC-3.0	DC-4.0	DC-5.0	DC-7.5
Blowing rate(m3)	750-1050	1350-1650	1700-2400	2650-3500	3800-4500	4800-7000
Pressure(Pa)	940-690	960-580	1680-1100	1680-1100	1680-1100	1680-1100
Power(KW)	1.62	2.32	3.12	4.12	5.62	7.62
Equipment max noise(dB)	60	65	70	70	75	75
Dedusting rate(%)	99.9	99.9	99.9	99.9	99.9	99.9
Length（L）	670	710	770	830	910	960
Width（W）	550	630	670	720	760	800
Height（H）	1620	1740	1810	1880	1970	2020
Filter Size(mm)	3256001	4086601	3256002	4086602	3256003	3256004
Total weight(Kg)	102	143	165	220	325	420
Power Supply	3Phase 380V 50Hz
