Brief description

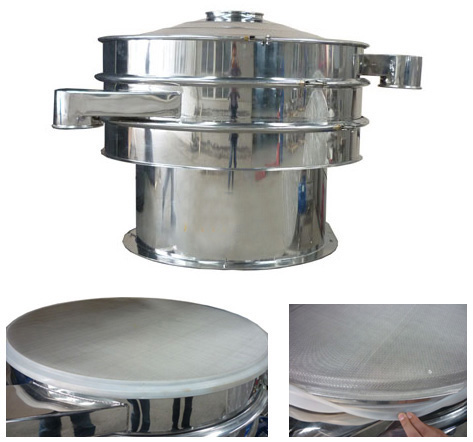

Rotary vibrating screen, also known as three-dimensional vibrating screening filter, vibrating screen, is a high-precision screening machine for screening powdery or fine-grained materials. Rotary vibrating screen can be used for dry and wet sieving, can be stacked with multiple layers of screen surface, screen frame and screen surface can use a variety of materials and structural forms, fully enclosed structure, no dust escape, suitable for various powder industries, particles, powders, and mucus can be screened within a certain range.

Features

1. A variety of materials with different particle sizes can be sieved at one time, greatly improving production efficiency.

2. The vibration speed is as high as 1460 times / min or more. The angle of the eccentric heavy hammer can be adjusted arbitrarily. The vibration speed and amplitude are greatly improved. Thus the screening performance is enhanced.

3. Auxiliary use of anti-blocking screen device of new materials such as rubber ball and three-dimensional vibration function raises the probability of material passing through the screen. It can further improve the screening efficiency.

4. Reasonable design optimization and advanced manufacturing process. Prolong the service life of the screening machine and reduce the machine operating noise, safe, reliable and no mechanical action.

5. A variety of unique grid structure. Easy and fast to install the screen mesh. It only takes 3-5 minutes, easy to operate and easy to clean.

6. The mesh is not blocked. The powder is not flying.

7. Small size. Light weight. Easy to move. The direction of the discharge port can be adjusted arbitrarily. The coarse and fine materials are automatically discharged. The operation can be automated.

8. Easy maintenance, can be used in multiple layers or single layer.

Technical Data
