BM Series Horizontal ribbon blender

Introduction

Descriptive abstract

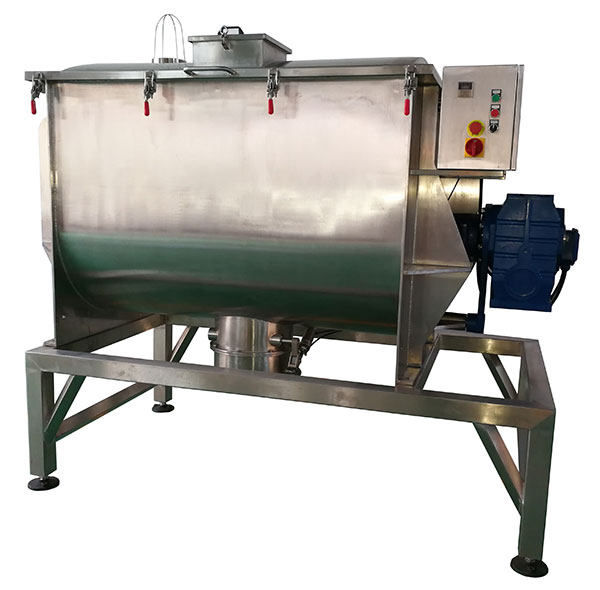

The Horizontal Ribbon Mixer consist of U-Shape tank, spiral and drive parts. The spiral is dual structure. Outer spiral make the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing. Our Ribbon mixer can mix many kinds material especially for the powder and granular which with stick or cohesion character, or add a little liquid and paste material into powder and granular material. The mixture effect is high. The cover of the tank can be made as open in order to cleaning and change parts easily.

Main features
This mixer with Horizontal tank , single shaft with dual spiral symmetry circle structure.
The top cover of the U Shape tank has the entrance for material. It can be also designed with spray or add liquid device according the customer’s needs. Inside the tank there equipped the axes rotor which consist of, corss support and spiral ribbon.
Under the bottom of the tank, there has a flap dome valve (pneumatic control or manual control) of the center. The valve is arc design that assure no material deposit and without no dead angle when mixing. Reliable regula- seal prohibit the leakage between the frequent close and open.
The discon-nexion ribbon of the mixer can make the material mixed with more high speed and uniformity in short time.
This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put into medium into the interlayer to get the mixing material cold or heat. Usually use water for cool and hot steam or use electrical for heat

Main Technical Data

Model	BM-200	BM-300	BM-500	BM-1000	BM-1500	BM-2000
Effective Volume	200L	300L	500L	1000L	1500L	2000L
Fully Volume	280L	420L	710L	1420L	1800L	2400L
Turning Speed	46rpm	46rpm	46rpm	46rpm	46rpm	46rpm
Total Weight	250kg	350kg	500kg	700kg	1000kg	1300kg
Total Power	4kw	5.5kw	7.5kw	11kw	15kw	22kw
Length（TL）	1370	1550	1773	2394	2715	3080
Width（TW）	834	970	1100	1320	1397	1625
Height（TH）	1647	1655	1855	2187	2313	2453
Length（BL）	888	1044	1219	1500	1800	2000
Width（BW）	554	614	754	900	970	1068
Height（BH）	637	697	835	1050	1155	1274
Radius(R)	277	307	377	450	485	534
Power Supply	3P AC208-415V 50/60Hz
