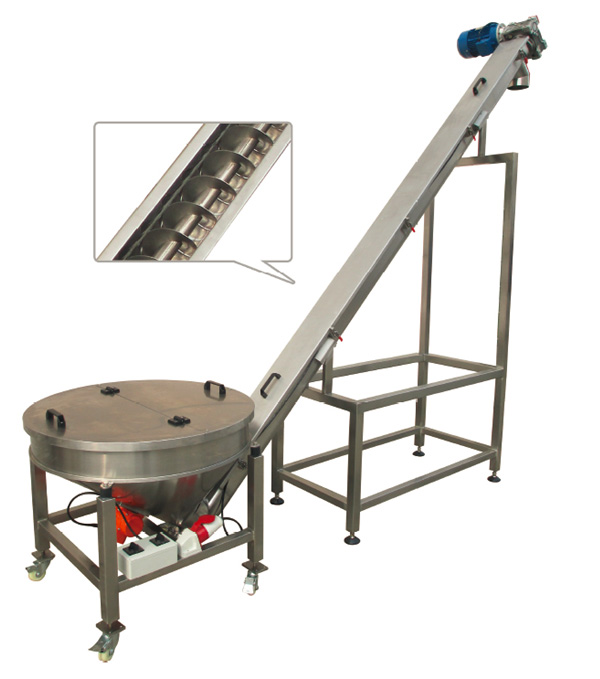

JN-U2S U-shape Inclined Screw Conveyor

Introduction

Power supply:3P AC208-415V 50/60Hz
Charging angle:Standard 45 degree,30~60 degree are also available.
Charging height:Standard 1.85M,1~5M could be designed and manufactured.
Charging capacity:Other charging capacity could be designed and manufactured.
The feeding system can be customized with no hopper,just connecting directly to other machines.
U shape trough,there is stainless steel cap on the trough hinged by buckle with good sealing in the middle,Easy to remove and clean.
Fully stainless steel,contact parts made of SS304.

Model	JN-U2S2	JN-U2S3	JN-U2S5	JN-U2S7	JN-U2S8	JN-U2S12
Conveying Capacity	2m³/h	3m³/h	5 m³/h	7 m³/h	8 m³/h	12 m³/h
Diameter of pipe	Φ102	Φ114	Φ141	Φ159	Φ168	Φ219
Total Power	0.58KW	0.78W	1.53KW	1.53KW	3.03KW	4.03KW
Total Weight	100kg	130kg	170kg	200kg	220kg	270kg
Hopper volume	100L	200L	200L	200L	200L	200L
