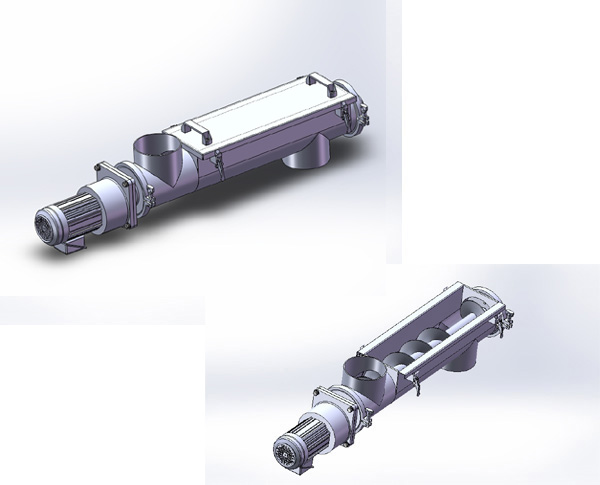

JN-UHE U-shape Horizontal Screw Conveyor

Introduction

Power Supply:3P AC208-415V 50/60Hz
Hopper volume:Standard 150L,50-2000L could be designed and manufactured.
The feeding system can be designed without hopper just connected directly with upward machines.
Conveying Length:Standard 0.8M, 0.4~6 could be designed and manufactured.
Charging capacity:Other charging capacity could be designed and manufactured.

U shape trough,there is stainless steel cap on the trough hinged by buckle with good sealing in the middle.Easy to remove and clean.

Model	JN-UHE-1	JN-UHE-2	JN-UHE-3	JN-UHE-5	JN-UHE-7	JN-UHE-8	JN-UHE-12
Conveying Capacity	1m³/h	2m³/h	3m³/h	5 m³/h	7 m³/h	8 m³/h	12 m³/h
Diameter of U-shape Trough	Φ89	Φ102	Φ114	Φ141	Φ159	Φ168	Φ219
Total Power	0.4KW	0.4KW	0.55W	0.75KW	0.75KW	0.75KW	1.1KW
Total Weight	75kg	80kg	90kg	100kg	110kg	120kg	150kg
