Screw Feeder

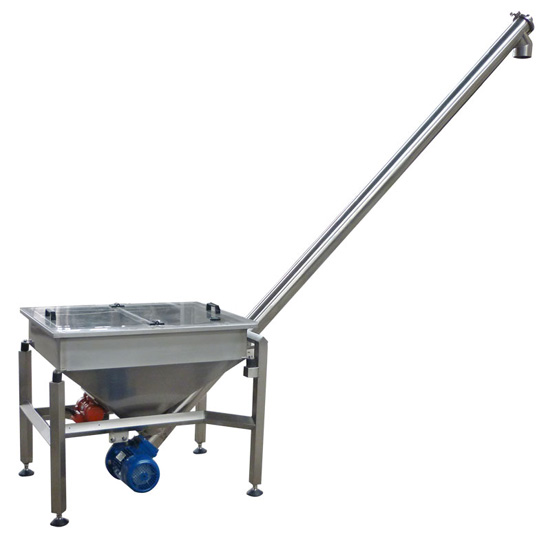

JN-2S Vibrating Hopper Inclined Screw Conveyor

Introduction

Power supply:3P AC208-415V 50/60Hz
Charging angle:Standard 45 degree,30~60 degree are also available.
Charging height:Standard 1.85M,1~5M could be designed and manufactured.
Hopper:Standard square shape,round hopper and other volume could be designed and manufactured.
Fully stainless steel,contact parts made of SS304.

Remark:Other charging capacity could be designed and manufactured.

Model	JN-2S2	JN-2S3	JN-2S5	JN-2S7	JN-2S8	JN-2S12
Charging Capacity	2m³/h	3m³/h	5 m³/h	7 m³/h	8 m³/h	12 m³/h
Diameter of pipe	Φ102	Φ114	Φ141	Φ159	Φ168	Φ219
Total power	0.58KW	0.78W	1.53KW	1.53KW	3.03KW	4.03KW
Total weight	100kg	130kg	170kg	200kg	220kg	270kg
Hopper volume	100L	200L	200L	200L	200L	200L
