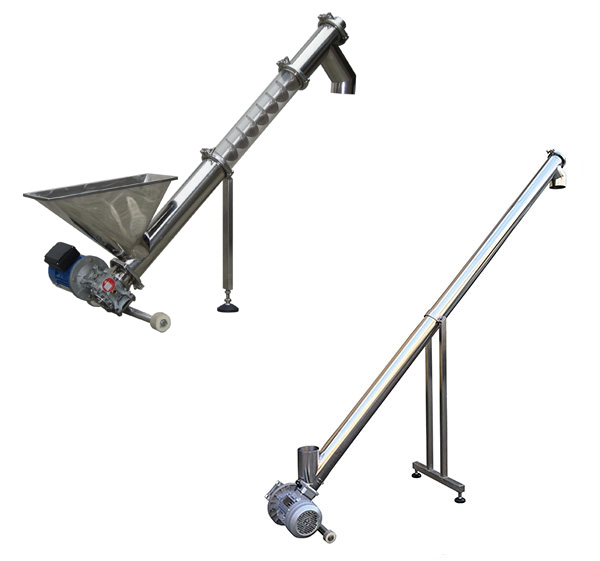

JN-1S Inclined Screw Conveyor

Introduction

Power supply:3P AC208-415V 50/60Hz
Charging angle:Standard 45 degree,30~60 degree also available.
Charging height:Standard 1.85M,1~5M could be designed and manufactured.
Fully stainless steel,contact parts made of SS304.
Remark:Other charging capacity could be designed and manufactured.

Model	JN-1S2	JN-1S3	JN-1S5	JN-1S7	JN-1S8	JN-1S12
Charging Capacity	2m³/h	3m³/h	5 m³/h	7 m³/h	8 m³/h	12 m³/h
Diameter of pipe	Φ102	Φ114	Φ141	Φ159	Φ168	Φ219
Total power	0.55KW	0.75W	1.5KW	1.5KW	3KW	4KW
Total weight	70kg	90kg	130kg	160kg	180kg	230kg
