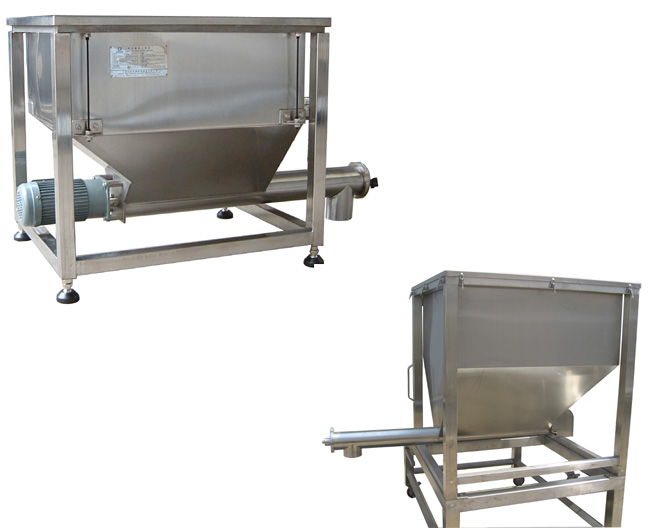

JN-HS Horizontal Screw Conveyor (With hopper)

Introduction

Power supply:3P AC208-415V 50/60Hz
Hopper volume:Standard 150L,50-2000L could be designed and manufactured.
Conveying length:Standard 0.8M, 0.4~6M could be designed and manufactured.
Fully stainless steel,contact parts made of SS304.
Remark:Other charging capacity could be designed and manufactured.

Model	JN-HS-1	JN-HS-2	JN-HS-3	JN-HS-5	JN-HS-7	JN-HS-8	JN-HS-12
Conveying Capacity	1m³/h	2m³/h	3m³/h	5 m³/h	7 m³/h	8 m³/h	12 m³/h
Diameter of pipe	Φ89	Φ102	Φ114	Φ141	Φ159	Φ168	Φ219
Total Power	0.4KW	0.4KW	0.55W	0.75KW	0.75KW	0.75KW	1.1KW
Total Weight	75kg	80kg	90kg	100kg	110kg	120kg	150kg
