Auger Filler

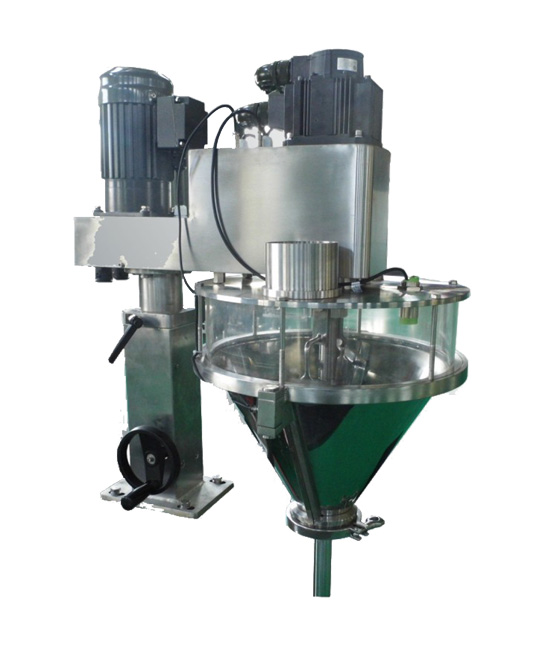

JN-500Auger filler

Introduction

Descriptive abstract
This type can do dosing and filling work. Due to the special professional design, it is suitable for the fluidic or low-fluidity materials, like milk powder, Albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.

Main features
The split hopper,could be washed easily without tools.
Servo motor drive screw.
Stainless steel structure,contact parts 304 SS.
Include handwheel of adjustable height.
Replacing the auger parts, it is suitable for material from super thin powder to granule.

Main Technical Data

Model	JN-3A-500	JN-3B-500	JN-3L-500
hopper	25L	50L	75L
Packing weight	1 - 200g	10 - 2000g	10 - 5000g
Packing accuracy	1 – 10g,≤±3-5%;10 – 100g, ≤±2%; 100 – 200g, ≤±1%	<100g,<±2%;100 ~ 500g, <±1%;＞500g, <±0.5%	<100g,<±2%;100 ~ 500g, <±1%;＞500g, <±0.5%
Filling speed	40 - 120 times per min	40 - 120 times per min	10 - 30 times per min
Power supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Total power	1.2 Kw	1.9 Kw	3.75 Kw
Total weight	140kg	220kg	300kg
Overall dimension	860×520×880mm	878×613×1227mm	1141×834×1304mm
