JN-F Semiautomatic Auger filling machine - Shanghai Hongde Packing machinery Co,Ltd.

Semi-automatic Filling Machine

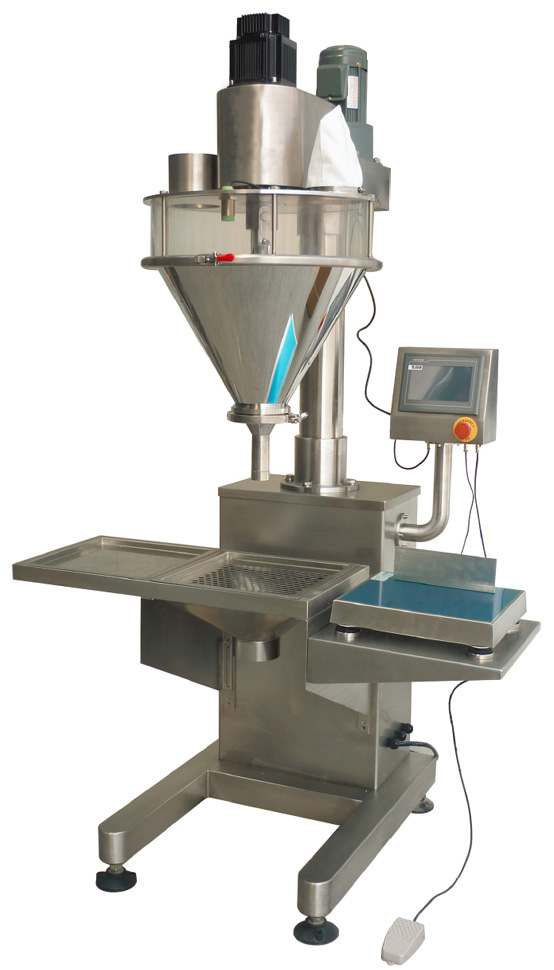

JN-F Semiautomatic Auger filling machine

Descriptive abstract
This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.

Main features
Stainless steel structure；Quick disconnecting or split hopper could be washed easily without tools.
Servo motor drive screw.
PLC & touch screen make it be easy of operation.
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Save the parameter of different filling weight for different materials. To save 10 sets at most
Replacing the auger parts, it is suitable for material from super thin powder to granule.

Main Technical Data

Model	JN-FA-2	JN-FB-2	JN-FS-11
Hopper	25L	50L	11L
Packing Weight	1 - 500g	10 - 2000g	1-100g
Packing accuracy	≤ 100g, ≤±2%; 100 – 500g, ≤±1%	≤ 100g,≤±2%; 100 – 500g,≤±1%;≥500g,≤±0.5%	0.5-5g,≤±6%; 10-100 ,≤±2%
Filling speed	40 – 120 times per min	30 – 80 times per min	40-120 times per min
Power supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Total Power	0.93 Kw	1.4Kw	0.81Kw
Total Weight	130kg	260kg	75kg
Overall Dimensions	807×700×1850mm	1140×970×2030mm	650×650×1050 mm
